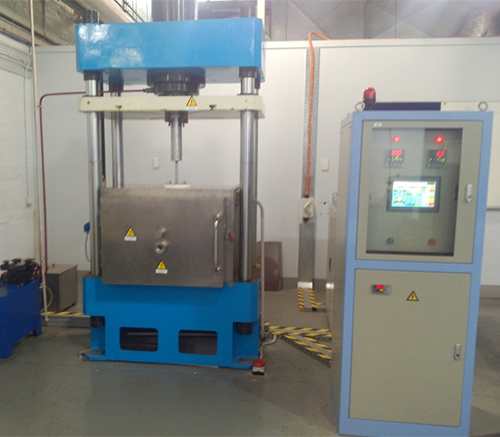

Equal Channel Angular Pressing Equipment
1. Equal Channel Angular Pressing Equipment does not require preheating and can be operated quickly.
2. Equal Channel Angular Pressing Equipment has a wide range of applications.
3. Equal Channel Angular Pressing Equipment is simple and convenient to operate, has low maintenance cost, and is suitable for novice operators.
- Information
Product introduction of Equal Channel Angular Pressing Equipment:
Equal channel angular pressing (ECAP) is one of the methods to prepare ultra-fine crystal materials with large plastic deformation. Materials with large grain size can be pressed to ultra-fine crystal size at room temperature.ECAP equal channel angular pressing equipment is made of Composed of presses, molds and auxiliary equipment. The press is used to apply high pressure, the mold is used to guide the metal material to undergo plastic deformation at the corners of the equal channel, and the auxiliary equipment is used to control process parameters such as temperature, lubrication and cooling.Equal channel pressure has a wide range of applications and can be used for the refinement and strengthening of various metal materials, such as aluminum alloys, magnesium alloys, titanium alloys, etc. Equal channel angular pressing device has important application value in aerospace, automotive, electronics, energy and other fields.
Product advantages of Equal Channel Angular Pressing Equipment:
1. The equal channel pressure we produce has a wide range of applications and can be used for the refinement and strengthening of various metal materials.
2. This Equal channel angular pressing device has high processing efficiency and can realize high-speed continuous extrusion processing, which greatly improves production efficiency.
3. Our Equal channel angular pressing system can squeeze the material multiple times to achieve refinement and uniformity of grains and improve the mechanical properties and stability of the material.
4. Our Vacuum equal channel angular pressure can significantly improve the strength, hardness and wear resistance of the material, while improving the plasticity and toughness of the material.
Product specifications of Equal Channel Angular Pressing Equipment:
| Installation form | vertical horizontal |
| Heater distribution method | Circular (squirrel cage)/six-sided distribution |
| Heater material | Graphite/nickel-chromium alloy, etc. |
| Insulation Materials | Hard carbon felt/mullite felt, etc. |
| maximum temperature | 1600℃ |
| Temperature control accuracy | ±1℃ |
| temperature uniformity | ±5℃ |
| Ultimate vacuum degree | 5×10 -4Pa |
| pressure rise rate | 0.5 Pa/hour |
| greatest pressure | 1T to 1000T optional |
| Pressure head displacement accuracy | 0.1mm |
| pressure fluctuations | ±0.1MPa |
| Average temperature zone size | Φ1000mm×1000mm |
| control method | automatic / manual |
Produced in our company's factory：
As a company that produces various types of vacuum application equipment, the factory has always played a vital role in our company's machinery production. Factory production has always been the core business of our company, involving a series of connections such as manufacturing, assembly, and design. First of all, our production starts from the design stage. Our team will design vacuum equipment that meets the requirements according to market changes and customer needs. During the design process, we will take into account the various functions, performance, and safety of the equipment. Other aspects to ensure the reliability of the product.
