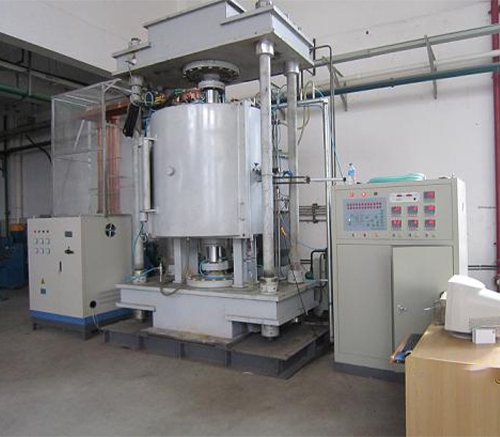

ITO Vacuum Hot Pressing Furnace
1. The ITO Vacuum Hot Pressing Furnace can realize automatic or manual control.
2. The ITO Vacuum Hot Pressing Furnace can achieve synchronous control of temperature and pressure.
3. The ITO Vacuum Hot Pressing Furnace is equipped with over-pressure and over-temperature safety alarm systems.
- Information
Product introduction of ITO Vacuum Hot Pressing Furnace:
ITO vacuum hot pressing furnace is a black-gray ceramic semiconductor formed by mixing indium oxide and tin oxide powder in a certain proportion and going through a series of production processes in a high-temperature atmosphere (1600 degrees, oxygen sintering). Using the ITO target as raw material, magnetron sputtering is performed on the ITO film, and the ITO target is oxidized onto the glass substrate or flexible organic film. The ITO film is conductive and translucent, and its thickness is generally 30nm to 200nm. Alloy target vacuum hot pressing furnace is a complete set of equipment for hot pressing all kinds of alloy materials under vacuum (or other atmosphere) conditions. It mainly adopts resistance heating, and the pressure head driven by the oil cylinder is pressed down. The equipment combines vacuum/atmosphere, hot pressing and high temperature sintering, which is suitable for high temperature hot forming of all kinds of alloy targets.
Product Benefits of the ITO Vacuum Hot Pressing Furnace:
1. Our High Vacuum Hot Pressing Sintering Furnace is a kind of vacuum hot pressing furnace, which adopts a vacuum hot pressing method.
2. The vacuum hot pressing method is a process that uses thermal energy and mechanical properties to densify powdery materials. The energy added by the ITO vacuum hot pressing furnace accelerates the densification of powdery materials, so it can be processed at a lower temperature and in a shorter time. Completely produced fully dense ITO target products in-house.
3. This product is a High Vacuum Hot Pressing Sintering Furnace, which has high vacuum properties and strong sealing properties.
4. Our ITO vacuum hot pressing furnace adopts a front-opening chamber horizontal design, making it easy to load and unload molds.
Product specifications of ITO Vacuum Hot Pressing Furnace:
| Installation form | vertical |
| Heater distribution mode | Circular distribution (squirrel cage) |
| Heater material | graphite |
| Thermal insulation material | Hard carbon felt |
| Maximum temperature | 2300℃ |
| Temperature control precision | ±1℃ |
| Temperature homogeneity | ±5℃ |
| Limit vacuum degree | 5×10-4Pa |
| Rate of pressure rise | 0.5Pa/h |
| Maximum pressure | 1T to 1000T optional |
| Indenter displacement accuracy | 0.1mm |
| Fluctuation of pressure | ±0.1MPa |
| Size of average temperature zone | Φ1000mm×1500mm |
| Mode of control | Automatic/Manual |
