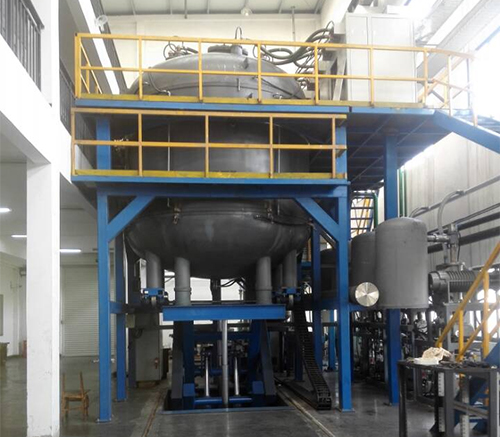

Quartz Sand Sintering Furnace
1. Quartz Sand Sintering Furnace can be customized according to meet different needs.
2. Quartz Sand Sintering Furnace adopts manual or automatic control mode and is easy to operate.
3. The products smelted by Quartz Sand Sintering Furnace have high temperature resistance.
- Information
Product introduction of Quartz Sand Sintering Furnace:
Quartz sand melting and sintering furnace is the equipment for high temperature melting after the refined quartz sand is loaded into the crucible and put into the furnace. The fused quartz becomes fused quartz through special machining, impurity removal, crushing, screening, magnetic separation and other processes. It is widely used in photovoltaic, large-scale integrated circuit, epoxy resin pouring, refractory, technical ceramics, precision casting and other industries.Quartz sand melting vacuum furnace uses a high-temperature burner or electric heater to provide a heat source to heat the quartz sand to a high temperature to melt it into a liquid state. The molten quartz sand can be cooled and solidified to form glass blocks or other shaped products.
Product advantages of Quartz Sand Sintering Furnace:
1. The Quartz Sand Melting Vacuum Sintering Furnace we produce plays an important role in glass manufacturing, silicon element production, and other related industries.
2. This quartz sand melting and sintering furnace can ensure that quartz sand can be heated to the required melting point evenly and effectively.
3. The quartz sand smelted by this Quartz sand melting vacuum furnace has high purity.
4. Our Quartz Sand Melting Vacuum Sintering Furnace can heat quartz sand to a very high temperature to melt it into a liquid state.
5. Our Quartz Sand Melting and Sintering Furnace has good corrosion properties for many chemical substances.
Product specifications of Quartz Sand Sintering Furnace:
| Installation form | vertical |
| Heater distribution mode | Circular distribution/up and down distribution |
| Heater material | graphite |
| Thermal insulation material | Hard carbon felt |
| Maximum temperature | 1900℃ |
| Temperature control precision | ±1℃ |
| Temperature homogeneity | ±5℃ |
| Limit vacuum degree | 5×10-1Pa |
| Size of average temperature zone | Customized according to customer requirements |
| Mode of control | Automatic/Manual |
