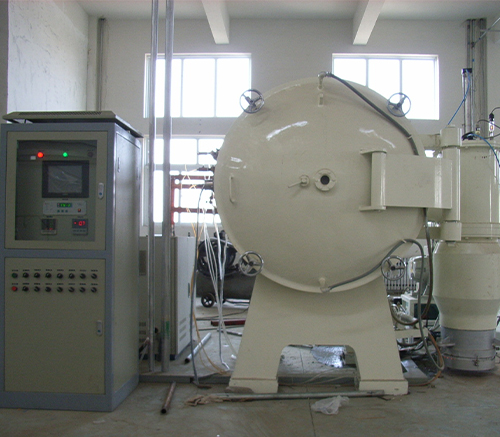

Horizontal Vacuum Sintering Furnace
1. Horizontal Vacuum Sintering Furnace is versatile.
2. The Horizontal Vacuum Sintering Furnace has high safety performance.
3. The Horizontal Vacuum Sintering Furnace has a reasonable structural design.
- Information
Product Introduction of Horizontal Vacuum Sintering Furnace:
Horizontal vacuum sintering furnace is a heat treatment equipment commonly used in powder metallurgy, ceramic materials, metal materials and other fields. Horizontal sintering furnace adopts a horizontal structure, and the interior of the furnace cavity is laid out horizontally. The furnace cavity is made of high-temperature materials and can withstand high temperatures and vacuum environments. Horizontal Sintering Vacuum Furnace can provide a high vacuum environment and reduce the impact of oxygen and other impurities on the sintering of materials by extracting air and impurities from the furnace cavity, thus ensuring the purity and quality of materials during the sintering process. Horizontal vacuum sintering furnace is suitable for high temperature vacuum/atmosphere sintering or vacuum heat treatment of materials. It is used in hard alloy, magnetic alloy, ceramic and powder material industry. The front and rear doors of the furnace are easy to enter and exit the material, and the whole process of vacuuming and heating/cooling can be automatically controlled.
Equipment that meets different requirements of vacuum Sintering, vacuum Annealing, Quenching of true air, vacuum Brazing, and so on, can be customized according to needs.
Product Benefits of Horizontal Vacuum Sintering Furnace:
1. This Horizontal vacuum sintering furnace can reach higher temperatures, with the maximum temperature reaching 2300°C, to meet the sintering needs of different materials.
2. Our horizontal sintering furnace is made of hard carbon fiber/tungsten, molybdenum reflective screen/mullite felt, and other insulation materials.
3. This Horizontal Sintering Vacuum Furnace can achieve precise temperature control with a control interval of 1°C.
4. This Horizontal vacuum sintering furnace can be customized to meet different requirements such as vacuum sintering, vacuum annealing, vacuum air quenching, and vacuum brazing.
Product Specifications of Horizontal Vacuum Sintering Furnace:
| Installation form | horizontal |
| Heater distribution method | Circular distribution/six-sided distribution |
| Heater material | Graphite/tungsten/molybdenum/tantalum/nickel-chromium alloy, etc. |
| Insulation Materials | Hard carbon felt/tungsten, molybdenum reflective screen/mullite felt, etc. |
| maximum temperature | 2300℃ |
| Temperature control accuracy | ±1℃ |
| temperature uniformity | ±5℃ |
| Ultimate vacuum degree | 5×10 -4Pa |
| Average temperature zone size | Customized according to customer requirements |
| control method | automatic / manual |
